Zinc Plated Steel DIN653 Knurled-Head Thumb Screws Knurled-Head Adjustment Screws

Product Categories
Suzhou Runtai Precision Hardware Co,.Ltd.
Contact Now

Zinc Plated Steel DIN653 Knurled-Head Thumb Screws Knurled-Head Adjustment Screws

  • 1
  • 2
  • 3

Brand Name : Runtai

Model Number : Knurled-Head Thumb Screws

Certification : ISO9001/TS16949

Place of Origin : Jiangsu, China (Mainland)

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A

Supply Ability : 5 Ton/ days

Delivery Time : 15-20 working days

Packaging Details : PP bag+Carton box+ Wooden Pallet

Size : M1-M30 for choose

Material : Steel, Stainless Steel, Brass, Aluminum Alloy

Grade : 4.8 8.8 10.9 12.9 for choose

Surface treatment : zinc plated, nickel plated, black phosphates for choose

Standard : DIN ISO JIS ANSI

Products Name : Zinc Plated Steel DIN653 Knurled-Head Thumb Screws

Contact Now

Zinc Plated Steel DIN653 Knurled-Head Thumb Screws Knurled-Head Adjustment Screws

Products Description

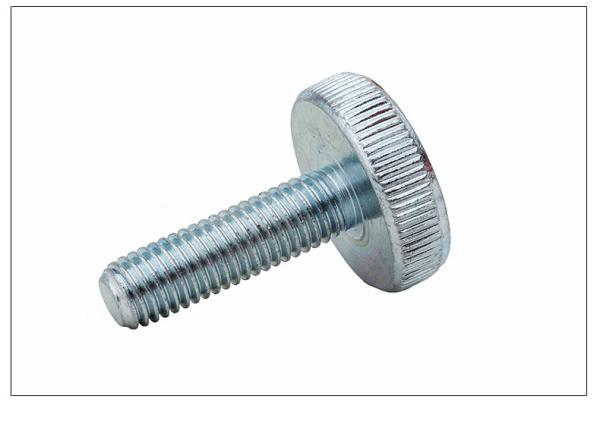

These thumb screws have a thin head for use in low-clearance applications. The head is knurled for slip-resistant controlled adjustment.They have a black-oxide finish to resist corrosion in dry environments.Length is measured from under the head.

Products Specification

Material Zinc Plated Steel
Thread Size M5
Thread Pitch 0.8 mm
Length 12 mm
Threading Fully Threaded
Head, mm
Diameter 20
Height 4
Tensile Strength 70,000 psi
Hardness Rockwell B84
Thread Type Metric
Thread Spacing Coarse
Thread Fit Class 6g
Thread Direction Right Hand
Head Texture Knurled
Head Type Thumb
Thumb Screw Head Shape Round
Round-Head Thumb Screw Profile Low
System of Measurement Metric
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.
